Procurement and facility managers often face a complex dilemma. You easily see the space-saving metrics of automated carousels on paper. However, actual long-term return on investment depends entirely on structural integrity. Material quality dictates whether a system thrives or fails. High-turnover environments constantly test these structures. Transit hubs, hospital campuses, and bustling commercial developments demand exceptional durability. In these demanding sectors, mechanical fatigue and environmental wear remain the leading causes of system breakdowns.

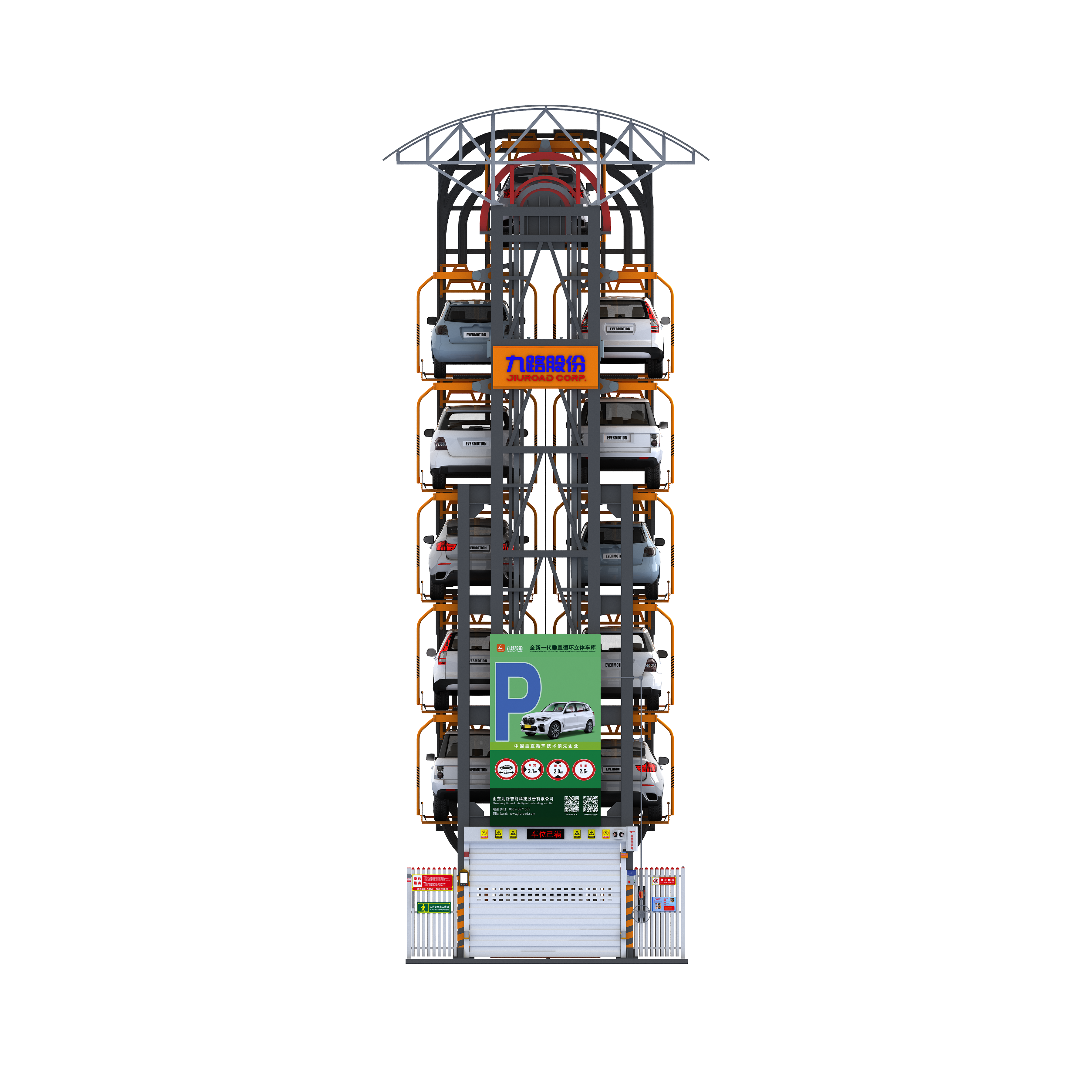

Evaluating the JR-SRP-20S requires you to look far beyond basic vehicle capacity. You must carefully scrutinize the specific steel grades used in the framework. You also need to examine the exact anti-corrosion treatments applied to exposed surfaces. Furthermore, load-bearing mechanisms play a critical role. These core components ultimately dictate building code compliance, daily user safety, and overall operational longevity. This guide breaks down exactly what construction details matter most to help you make an informed procurement decision.
Material Grade is Non-Negotiable: The lifespan of the JR-SRP-20S relies on high-strength structural steel (e.g., Q355 or equivalent) to withstand continuous dynamic loads.
Corrosion Protection Dictates TCO: Proper anti-corrosion treatments—specifically hot-dip galvanization—are required for outdoor implementations to prevent structural degradation.
Component Transparency Matters: Buyers must verify the origins and ratings of drive chains, motors, and pallet materials, as these are the highest-wear components.
Compliance is Tied to Construction: Local building and safety codes mandate specific material tolerances for wind load, seismic activity, and fire safety.
You must differentiate between standard carbon steel and high-tensile structural steel. Standard Q235 steel is common in light-duty applications. However, automated carousels require Q355 high-tensile steel or an international equivalent. The main support frame bears the entire weight of the structure and parked vehicles.
High-tensile steel drastically reduces the risk of micro-fractures. Automated systems constantly endure heavy, asymmetric loads. For example, heavier SUVs often sit concentrated on one side of the carousel. This weight imbalance puts immense stress on the central axis. Q355 steel flexes and recovers without sustaining permanent structural damage. Upgrading to high-tensile steel ensures continuous, safe operation during peak usage hours.
Structural Steel Comparison
Feature | Standard Carbon Steel (Q235) | High-Tensile Steel (Q355) |
|---|---|---|
Yield Strength | 235 MPa | 355 MPa |
Load Capacity | Suitable for static, light loads | Excellent for dynamic, heavy loads |
Micro-Fracture Risk | High under asymmetric stress | Low under asymmetric stress |
Best Application | Non-load-bearing enclosures | Main support columns and beams |
Platform construction directly impacts user safety and vehicle protection. You should always evaluate the design of the car pallets. Corrugated steel plates outperform flat plates in every metric. You must assess both the metal thickness and the anti-slip surface treatments applied to the platforms.
Thicker, corrugated profiles prevent platform warping over time. Heavy vehicles exert immense downward force on the tire tracks. A corrugated design distributes this weight evenly across the pallet. Additionally, corrugated platforms safely capture fluid leaks. Parked vehicles frequently leak oil, coolant, or condensation. A well-designed corrugated tray traps these fluids. This prevents harmful chemicals from dripping onto cars parked on lower tiers.
You must demand precise specifications on the alloy steel used in the main drive chains. Drive chains are arguably the single highest point of failure in rotary systems. They lift massive amounts of weight continuously throughout the day. Standard steel chains stretch and deform quickly under such strain.
Look for pre-stretched, fatigue-resistant alloy steel components. Reputable manufacturers provide documented high-cycle durability ratings for their chains. High-grade alloy steel resists the stretching and metal fatigue caused by constant motion. Choosing superior rotary parking system materials minimizes downtime. It also significantly lowers the frequency of mandatory chain replacements and routine tensioning adjustments.
Deploying smart parking equipment in open-air environments requires careful planning. Campus parking lots and airport overflow areas expose machinery to the elements constantly. Rain, heavy snow, road salt, and intense UV exposure degrade bare metal rapidly. Environmental wear silently compromises structural integrity over time. You must prioritize weather resistance to protect your investment.
Hot-dip galvanization is the undisputed industry standard for main structural columns. The galvanization process immerses the steel into molten zinc. This creates a powerful metallurgical bond. The zinc coating provides robust internal and external rust protection. Standard surface painting or basic powder coating only covers the exterior. Paint easily chips, allowing moisture to seep underneath and cause hidden rust.
Galvanized steel components require a higher upfront investment. However, you must weigh this against the drastic reduction in structural maintenance. Hot-dip galvanization effectively eliminates major rust-related downtime over a 15-to-20-year lifecycle. Paint requires frequent touch-ups, whereas galvanized zinc sacrifices itself to protect the underlying steel.
Mechanical steel is only part of the equation. You must ensure that all sensitive electronics remain dry and dust-free. Limit switches, photoelectric sensors, and PLC control boxes govern the automated movements. Water ingress causes short circuits, erratic behavior, and sudden system failures.
Ensure all electrical housings feature appropriate Ingress Protection (IP) ratings. You should demand IP65 or higher for outdoor installations. An IP65 rating guarantees complete protection against dust infiltration. It also shields the electronics from low-pressure water jets, such as heavy rain or cleaning hoses. Proper sealing prevents moisture from corroding delicate internal wiring.
Safety redundancies separate premium equipment from budget alternatives. You must detail the specific materials used in the anti-swing guides. Manufacturers often construct these guides from specialized nylon or reinforced polyurethane. These durable polymers prevent car pallets from oscillating violently during rotation.
Minimizing swing ensures complete vehicle stability. It prevents cars from shifting on the platforms while moving. Furthermore, rigid anti-swing mechanisms prevent structural binding. If pallets sway too much, they can catch on the main frame. High-grade polyurethane absorbs vibrations and provides a smooth, frictionless guide path for the rotating platforms.
You should carefully scrutinize the casing materials of the geared motors. Automated carousels stop and start hundreds of times daily. This constant mechanical braking generates immense heat. Heat degrades motor coils and brake pads rapidly if left unmanaged.
Aluminum alloy casings offer superior heat dissipation compared to standard steel or cast iron enclosures. Aluminum sheds thermal energy quickly into the surrounding air. This cooling effect is vital for high-frequency operations during peak traffic hours. Better heat management directly extends the operational life of the geared motors and braking mechanisms.
High-strength, anti-rust bolts are absolutely critical for structural safety. Manufacturers assemble the entire steel frame using thousands of heavy-duty fasteners. You must specify Grade 8.8 or 10.9 galvanized fasteners for all structural joints.
Cheaper, lower-grade fasteners will rust within a few seasons. Once a bolt rusts, it loses its tensile strength and shears under load. A single compromised connection point threatens the entire high-grade steel frame. Investing in premium galvanized bolts ensures the joints remain as strong as the primary steel columns.
The best structural materials mean nothing if the foundation fails. The concrete base must handle incredible static and dynamic point loads. A fully loaded carousel concentrates hundreds of tons of weight onto a very small footprint.
You must outline strict concrete grade and curing depth requirements. Engineers typically require high-strength reinforced concrete for the foundation pads. The concrete must cure to a specific depth to prevent ground settling. Uneven ground settling throws the entire vertical structure out of alignment. A misaligned frame causes chains to wear unevenly and motors to burn out prematurely.
Site-specific environmental factors dictate the required anchoring strategy. Coastal areas require high wind-load ratings. Earthquake-prone regions demand strict seismic compliance. You must adjust the thickness of the base plates accordingly to meet local building codes.
Engineers use specific chemical or mechanical anchors to secure the system firmly to the ground. Mechanical anchors expand deep inside the concrete pad. Chemical anchors use specialized epoxy to bond the steel threaded rods directly to the foundation. Proper anchoring ensures the tall vertical structure resists tipping forces during severe storms or seismic events.
You must verify vendor claims with hard data. Reputable vendors always provide documented proof of their steel grades. Demand official Material Test Reports (MTRs) before signing any purchase orders.
MTRs verify the chemical composition and yield strength of the steel batches. Furthermore, ask for documentation proving the galvanization thickness. Inspectors measure galvanization in microns. A thicker micron count guarantees a longer lifespan against outdoor corrosion. Do not accept quotes that lack verifiable material documentation.
You should cross-reference the warranty length with the materials proposed. Skeptically review quotes offering thin-gauge steel alongside exceptionally long warranty promises. These mismatched quotes often hide aggressive maintenance caveats.
Examine the fine print for warranty exclusions. Some vendors void the warranty if surface paint chips and rust appears. If a vendor proposes standard Q235 steel painted with basic enamel, a 10-year warranty is mathematically unrealistic without constant, expensive parts replacement. Align the warranty terms logically with the proven durability of the physical materials.
To finalize your evaluation, follow a structured verification process. Use the following steps to validate vendor capabilities:
Request an in-person site visit to a system operational for at least 3 to 5 years.
Inspect the real-world weathering on the main structural columns and car pallets.
Listen closely to the drive chains and geared motors during peak operation.
Interview the local facility manager regarding actual maintenance frequencies.
Seeing an aged system in person reveals the truth about material quality. It quickly exposes inadequate galvanization, stretched chains, and poor hardware choices.
The physical footprint of an automated carousel remains identical regardless of manufacturer quality. However, its operational lifespan relies strictly upon the material choices you make during procurement. Upgrading to Q355 high-tensile steel prevents microscopic fractures under heavy loads. Choosing hot-dip galvanization over standard paint stops insidious rust before it starts.
You must demand detailed Material Test Reports and scrutinize component origins. Check motor casings, anti-swing guides, and fastener grades. Ensure your concrete foundation and anchoring methods meet site-specific environmental codes. Decision-makers should always prioritize high-grade structural steel and comprehensive anti-corrosion treatments over marginal upfront cost savings. This proactive approach guarantees a highly reliable, fully compliant, and ultimately safe parking operation.
A: You should focus exclusively on high-strength structural steel. Demand Q345, Q355, or equivalent international grades for the main load-bearing framework. You must avoid standard Q235 steel, as it struggles to support heavy, dynamic loads safely over time.
A: Severe weather resistance relies heavily on proper foundational anchoring to withstand high winds. Rain and snow protection comes from hot-dip galvanized steel components. Furthermore, all electrical housings and sensors require IP65 or higher ratings to prevent moisture ingress.
A: Hot-dip galvanization creates a deep metallurgical bond with the steel. This process protects against physical scratches and internal rust. Standard paint merely coats the surface. Paint chips easily, allowing moisture to seep in and corrosion to spread hidden underneath.
A: High-grade alloy steel chains can last several years under heavy daily use. However, you must implement proper automated lubrication systems. While superior materials delay replacement, executing routine inspection and tensioning schedules remains mandatory for safe operations.
