Product Description

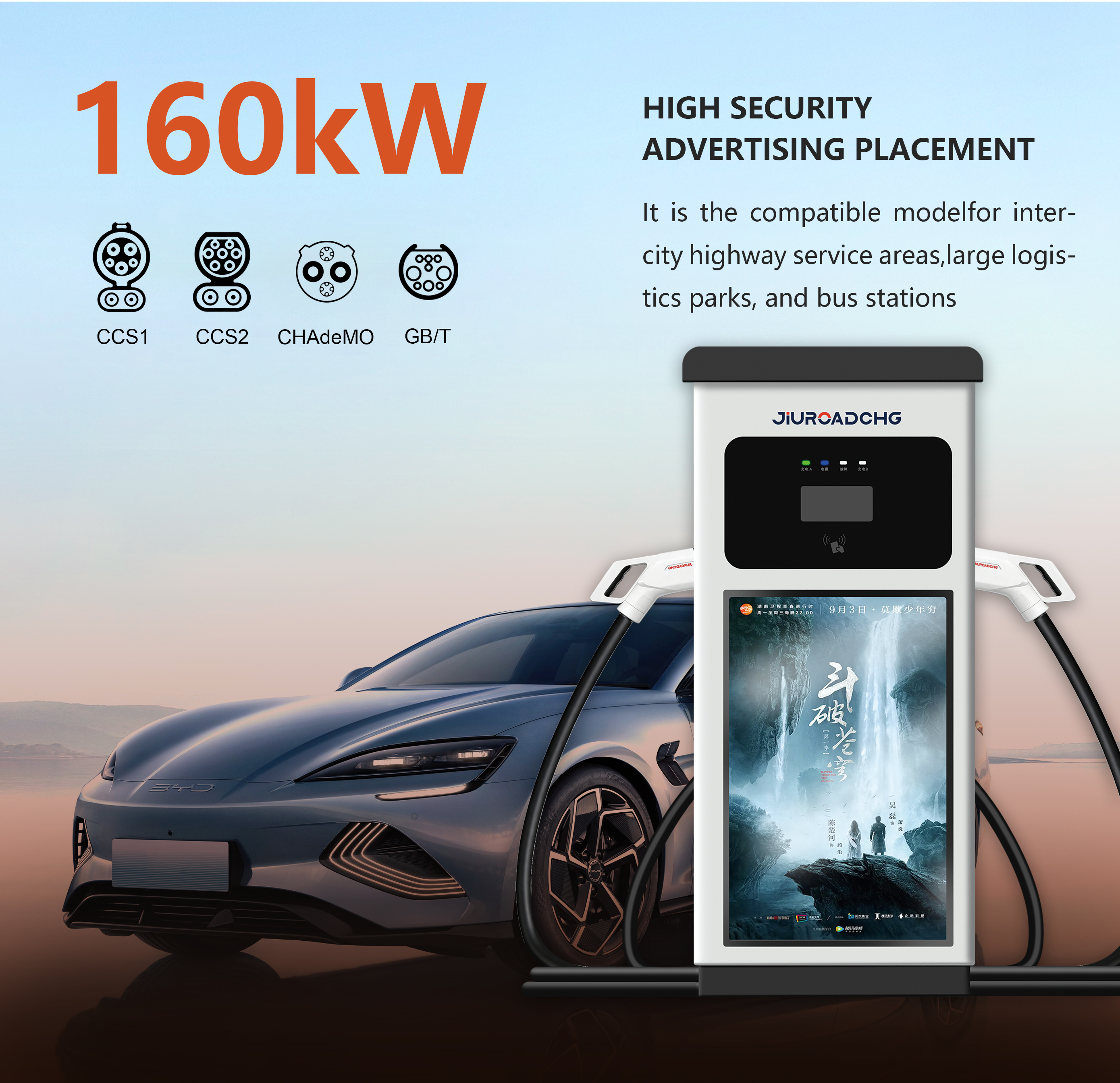

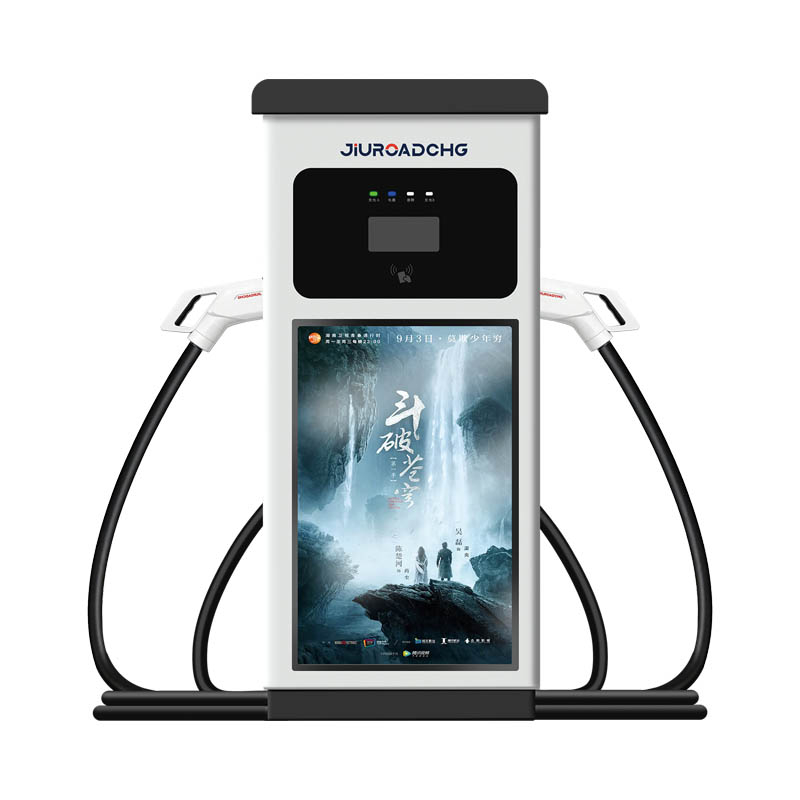

Transform your parking facility or commercial space into a highly profitable energy hub with this sophisticated 160kW EV DC Charging Integrated Machine. Crafted with a sleek, floor-standing architectural silhouette, the robust metal chassis feels remarkably solid to the touch, coated in a premium, weather-resistant finish that actively repels dust and moisture. At first glance, the vibrant 43-inch high-definition screen captures attention immediately, radiating brilliant, true-to-life colors even under the harshest midday sun. This is not merely a utility station; it is a dynamic digital billboard that silently generates revenue while delivering a whisper-quiet, ultra-fast charge to next-generation electric vehicles. The seamless integration of high-voltage power electronics and smart content management allows facility operators to offer a premium, frictionless experience for drivers. Every curve, cooling vent, and heavy-duty connector is engineered for rigorous commercial use, ensuring that the tactile experience of plugging in feels exceptionally secure and professional. By merging rapid energy replenishment with captivating visual marketing, this charging solution fundamentally redefines the return on investment for forward-thinking infrastructure developers.

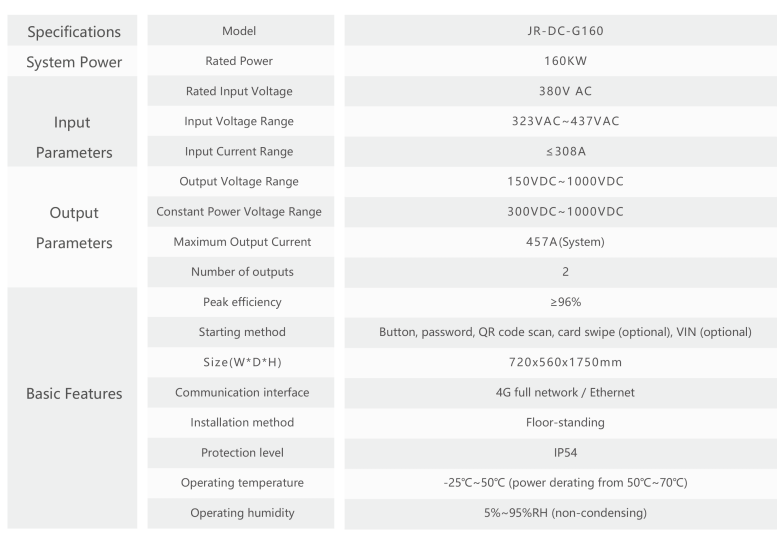

Specifications | JR-DC-G160 | |
|---|---|---|
System Power | Rated Power | 160KW |
Input Parameters | Rated Input Voltage | 380V AC |
Input Voltage Range | 323VAC~437VAC | |
Input Current Range | ≤308A | |
Output Parameters | Output Voltage Range | 150VDC~1000VDC |
Constant Power Voltage Range | 300VDC~1000VDC | |
Maximum Output Current | 457A (System) | |
Number of outputs | 2 | |
Basic Features | Peak efficiency | ≥96% |
Starting method | Button, password, QR code scan, card swipe (optional), VIN (optional) | |
Size (WDH) | 720×560×1750mm | |
Communication interface | 4G full network / Ethernet | |
Installation method | Floor-standing | |
Protection level | IP54 | |
Operating temperature | -25℃~50℃ (power derating from 50℃~70℃) | |
Operating humidity | 5%~95%RH (non-condensing) |
Integrated 43-Inch HD Advertising Display: The front of the unit features a high-brightness (2000–3500 cd/m²), industrial-grade 43-inch LCD screen. Designed for 24/7 outdoor visibility even in direct sunlight, this display supports split-screen video and image playback. Whether promoting retail offers or selling ad space to local partners, the Advertising EV Charger transforms a functional utility into a consistent revenue stream.
160kW Rapid Energy Delivery: Delivering a powerful 160kW output, this machine can replenish most electric vehicles from 20% to 80% in approximately 15–25 minutes. It operates within a wide voltage range of 200V–1000V, ensuring full compatibility with the latest 800V high-voltage EV architectures and luxury performance models.
Dual-Gun Intelligent Load Balancing: Equipped with two charging connectors (CCS2, CHAdeMO, or GB/T), the system can charge two vehicles simultaneously. Our intelligent power distribution logic automatically adjusts the output between the two guns based on real-time vehicle demand, ensuring maximum station turnover and efficiency.
Smart Content Management System (CMS): The advertising platform is powered by an Android-based quad-core processor with built-in Wi-Fi, 4G, and Ethernet connectivity. Owners can remotely update advertising content, schedule playback times, and monitor display health via a cloud-based dashboard, significantly reducing the manual effort required for content updates.
Military-Grade Resilience & IP54 Protection: To protect the sensitive display and internal power electronics, the unit features an IP54-rated waterproof and dustproof enclosure. It is designed for stable operation in extreme temperatures (-30°C to +50°C) and includes comprehensive safety protections—over-voltage, short-circuit, and leakage protection—ensuring the highest levels of reliability for public use.
Commercial ROI & Revenue Generation
Addressing the core financial objectives of infrastructure investors, this unit transcends the traditional definition of a charging station. It acts as a powerful dual-engine profit center, drastically reducing the time required to achieve a full return on your capital investment.
Dual Income Streams: Generate consistent revenue not only from the markup on electrical dispensing but also through the leasing of premium digital advertising space to local businesses or national brands.
Captive Audience Marketing: Drivers spending 15 to 25 minutes at the station represent a highly engaged, captive audience, making the digital ad space incredibly valuable and easy to sell to media buyers.
Accelerated Payback Period: By stacking lucrative advertising revenue on top of standard charging fees, operators can offset initial hardware and installation costs significantly faster than with standard, non-display models.
Property Value Enhancement: Installing cutting-edge, aesthetically pleasing digital infrastructure elevates the perceived value and modern appeal of retail centers, logistics parks, and highway service areas.
Uncompromising performance is the cornerstone of driver retention. This system is precisely calibrated to deliver massive amounts of energy with pinpoint precision, ensuring comprehensive compatibility with the rapidly evolving automotive landscape.
High-Voltage Readiness: Operating flawlessly across an expansive 150VDC to 1000VDC output range, the station is fully prepared for the next generation of high-performance vehicles utilizing 800V battery architectures.
Intelligent Load Balancing: When two vehicles plug in simultaneously, the onboard microprocessors instantly analyze the maximum acceptance rate of each battery, dynamically splitting the 160kW to optimize the charging speed for both drivers without overloading the grid.
Maximized Station Turnover: By delivering up to 457A of system current, the equipment minimizes driver dwell time, allowing operators to service a significantly higher volume of vehicles per day.
Universal Connector Options: Configurable with industry-standard plugs, ensuring that no driver is turned away, regardless of their vehicle's make, model, or origin.
The visual component of this station is engineered to command attention and deliver messages with absolute clarity. Utilizing advanced optical technologies, the display delivers broadcast-quality media in challenging outdoor environments where standard screens would simply wash out.
Sunlight-Readable Brilliance: Boasting an intense brightness of 2000 to 3500 cd/m², the industrial-grade LCD ensures your advertisements remain crisp, vibrant, and fully legible even under direct, glaring sunlight.
Cloud-Based Content Management: Powered by an Android quad-core processor, the built-in CMS allows operators to push video updates, change static images, and schedule complex playlists remotely from a centralized web dashboard.
Zero On-Site Maintenance: Eliminate the costly need for physical USB drives or manual field interventions; all media updates are executed seamlessly via the integrated 4G or Ethernet network connections.
Split-Screen Functionality: Maximize the utility of the 43-inch canvas by displaying real-time charging status metrics on one section while running high-definition video commercials on the other.
Outdoor infrastructure must withstand the relentless assault of nature. This machine is heavily armored against the elements, ensuring uninterrupted service and protecting your capital investment year after year, regardless of the climate.
IP54 Weatherproof Enclosure: The meticulously sealed chassis prevents the ingress of driving rain, fine dust, and environmental particulates, safeguarding the sensitive power electronics and optical components inside.
Extreme Temperature Resilience: Engineered to perform flawlessly in freezing winters down to -25°C and sweltering summers up to 50°C, featuring intelligent power derating to protect the system during unprecedented heatwaves.
Anti-Corrosion Craftsmanship: The exterior is treated with specialized industrial coatings that resist rust, UV degradation, and chemical exposure, maintaining a pristine, professional appearance over a long service life.
Vandal-Resistant Design: The robust structural integrity and toughened front glass protect the valuable advertising display from accidental impacts and tampering in high-traffic, unsupervised public locations.
True operational scale requires automation and seamless data flow. This charger is designed to integrate effortlessly into broader network ecosystems, transforming standalone units into a synchronized, intelligent, and highly profitable grid.
OCPP Protocol Compliance: Fully compatible with mainstream Open Charge Point Protocols, allowing seamless onboarding to your existing Charge Point Management System (CPMS) without restrictive proprietary lock-in.
Automated Billing & Payments: Facilitates frictionless, cashless transactions through RFID card swipes, QR code scanning, or optional VIN recognition, streamlining the entire revenue collection process.
Remote Diagnostics: Advanced telemetry continuously streams hardware health data to the cloud, enabling predictive maintenance and allowing technicians to resolve software issues remotely before they impact users.
Unmanned Station Capabilities: By automating payment, power delivery, and media management, operators can run highly profitable, 24/7 charging hubs with virtually zero on-site staff required.
When dispensing massive amounts of electrical current in public spaces, safety is absolutely non-negotiable. This equipment incorporates a rigorous, multi-layered defense system to protect the user, the vehicle, and the local power grid.
Electrical Fault Isolation: Equipped with rapid-response over-voltage, under-voltage, and short-circuit protections that instantly sever power flow the millisecond an electrical anomaly is detected.
Active Leakage Protection: Highly sensitive grounding monitors prevent any stray currents from reaching the external chassis, ensuring absolute physical safety for drivers operating the equipment in wet or snowy conditions.
Thermal Monitoring: A network of internal temperature sensors continuously monitors the charging cables and power modules, proactively preventing overheating during prolonged high-power dispensing sessions.
Grid Fluctuation Smoothing: Designed to handle input voltage variances gracefully (323VAC to 437VAC), ensuring that unstable local power grids do not damage the connected vehicle's delicate battery management system.
We understand that large-scale operators need hardware that reflects their unique corporate identity. As a direct manufacturer, we offer extensive bespoke engineering to perfectly align the physical product with your overarching brand strategy.
Bespoke Exterior Branding: From custom chassis paint colors to precision-applied corporate logos, we transform the hardware into a seamless, highly visible extension of your brand's visual identity.
Tailored User Interfaces: The on-screen charging instructions and touch interactions can be entirely reskinned to match your brand guidelines, providing a cohesive customer journey from the mobile app to the physical plug.
Flexible Hardware Configurations: Depending on regional requirements, we can customize the charging gun types, cable lengths, and integrated payment terminals to perfectly suit your target demographic.
Strategic OEM Partnerships: We empower Charge Point Operators (CPOs) to rapidly scale their proprietary networks without the immense overhead and delay of internal hardware research and development.
Selecting the right manufacturing partner is just as critical as selecting the right technology. We provide an unparalleled foundation of quality, scale, and dedicated support for your commercial infrastructure projects.
Direct Manufacturer Advantage: By cutting out the middleman, we provide highly competitive pricing structures for volume deployments, maximizing your procurement budget and improving your bottom line.
Rigorous Quality Assurance: Every integrated machine undergoes exhaustive pre-shipment testing, including full-load burn-in cycles and environmental stress tests, guaranteeing out-of-the-box reliability.
Global Supply Chain Expertise: With years of experience fulfilling large-scale international orders, we ensure secure packaging, fully compliant documentation, and highly predictable delivery timelines.
Dedicated Technical Support: Our engineering team provides comprehensive post-deployment assistance, from API integration guidance to remote troubleshooting, ensuring your network maintains maximum uptime.
The system continuously monitors the maximum charge acceptance rate of both connected vehicles in real-time. If one vehicle requires 100kW and the other can only safely accept 60kW, the station dynamically routes the exact required power to each gun. As batteries fill up and their demand drops, the system instantly reallocates the surplus power to the other vehicle, ensuring the full 160kW capacity is utilized efficiently without wasting energy.
Yes, absolutely. The integrated Android-based Content Management System (CMS) connects via 4G or Ethernet to a secure, centralized cloud dashboard. From a single computer anywhere in the world, operators can upload new video files, create timed playlists, and push content updates simultaneously to hundreds of charging stations across different geographic regions.
The 43-inch display is securely housed behind toughened, vandal-resistant glass within an IP54-rated enclosure. It features internal climate control mechanisms that prevent condensation and manage heat dissipation. If the internal temperature exceeds safe operating limits during an extreme heatwave, the system will automatically dim the screen or initiate power derating to protect the electronic components from thermal damage.
Yes. With an expansive output voltage range spanning from 150VDC all the way up to 1000VDC, this equipment is fully capable of delivering optimal, high-speed charging to both traditional 400V vehicles and the newest generation of luxury, high-performance EVs utilizing advanced 800V battery systems.
We offer comprehensive OEM and ODM services tailored for network operators. Clients can request custom exterior colors, brand-specific decals, personalized user interface designs, and specific connector configurations. This allows you to deploy premium, reliable hardware that perfectly aligns with your corporate identity and regional market requirements.
