Product Description

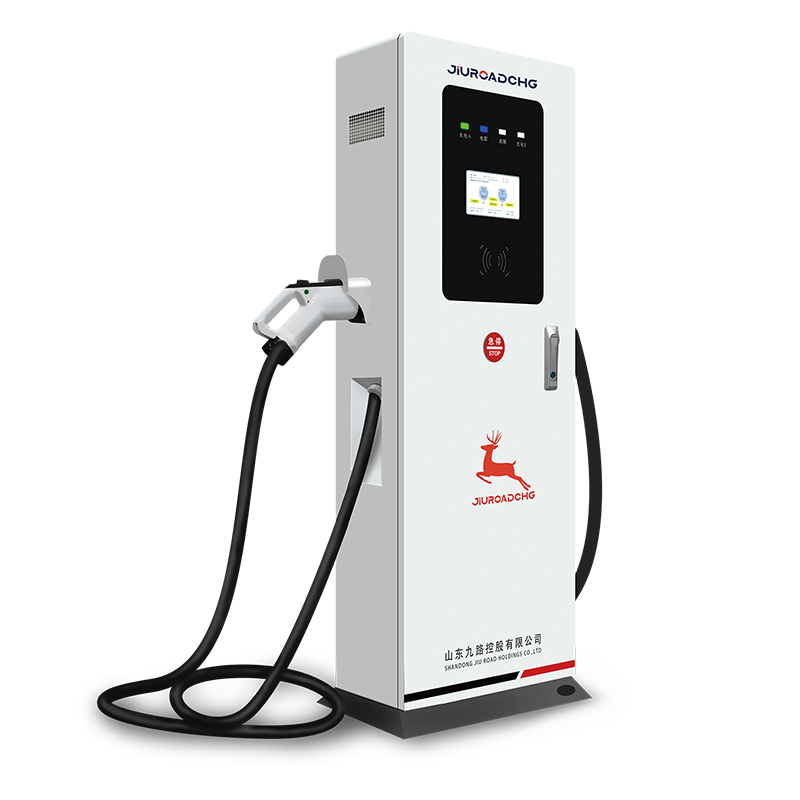

Stepping up to the 120kw EV DC Charging Integrated Machine, one immediately notices the sleek, minimalist aesthetic of its ultra-compact vertical cabinet. The exterior features a premium, anti-corrosion powder-coated finish that feels cool and robust to the touch, reflecting its industrial-grade durability designed to weather the harshest elements. When operational, the unit emits only a faint, reassuring hum, a testament to its unique airflow channel and ultimate noise reduction technology that prevents auditory disruption in quiet environments. The ultra-light charging cables glide effortlessly from their holsters, ergonomically crafted to ensure that any user can maneuver them with minimal physical strain. Beyond its refined exterior, this integrated powerhouse is engineered to transform your parking infrastructure into a high-yield asset. By delivering a consistent 120kW surge, it rapidly replenishes modern electric vehicles, turning extended waiting periods into brief, efficient stops. The crisp, high-brightness 7-inch touch screen provides immediate visual feedback, guiding users smoothly through the authentication and charging process with intuitive precision. Every component, from the heavy-duty CCS2, CHAdeMO, or GB/T connectors to the highly responsive digital interface, is meticulously crafted to elevate the user experience while ensuring military-grade stability for facility operators managing high-traffic public stations.

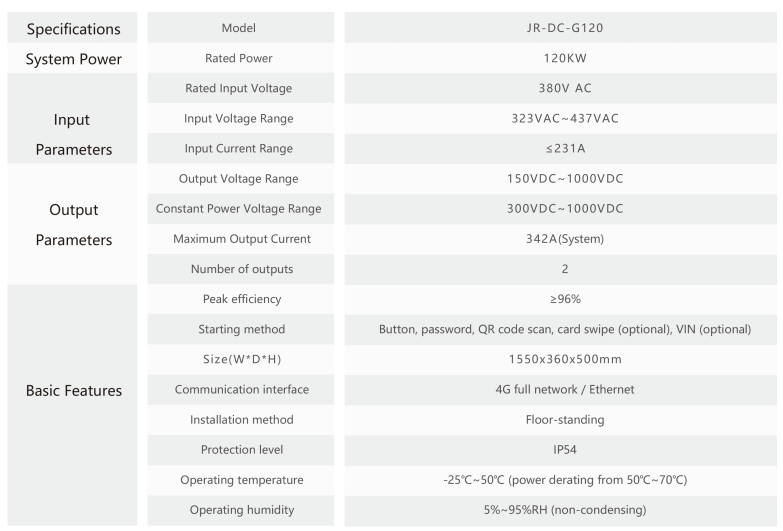

分类 | 项目 | 参数 |
|---|---|---|
Specifications | Model | JR-DC-G120 |
System Power | Rated Power | 120KW |
Input Parameters | Rated Input Voltage | 380V AC |
Input Voltage Range | 323VAC~437VAC | |
Input Current Range | ≤231A | |
Output Parameters | Output Voltage Range | 150VDC~1000VDC |
Constant Power Voltage Range | 300VDC~1000VDC | |
Maximum Output Current | 342A(System) | |
Number of outputs | 2 | |
Basic Features | Peak efficiency | ≥96% |
Starting method | Button, password, QR code scan, card swipe (optional), VIN (optional) | |
Size(WDH) | 1550x360x500mm | |
Communication interface | 4G full network / Ethernet | |
Installation method | Floor-standing | |
Protection level | IP54 | |
Operating temperature | -25℃~50℃ (power derating from 50℃~70℃) | |
Operating humidity | 5%~95%RH (non-condensing) |
Ultra-Compact Integrated Architecture: This unit is specifically designed to minimize the installation footprint. By integrating all functional components—including the modular power units, metering, and billing systems—into a single vertical cabinet, we offer an All-in-One DC Fast Charger that can be deployed in standard parking stalls without requiring extensive site remodeling.
120kW High-Speed Power Output: Delivering a consistent 120kW of power, this machine can replenish an average EV battery from 30% to 80% in approximately 20–30 minutes. It supports a wide output voltage range (200V–1000V), ensuring full compatibility with both current 400V passenger vehicles and the latest 800V high-voltage EV platforms.
Intelligent Dual-Gun Power Sharing: Equipped with two independent charging connectors (CCS2, CHAdeMO, or GB/T), the system supports simultaneous charging for two vehicles. Its intelligent power distribution logic ensures that energy is allocated efficiently between the two guns, maximizing station turnover and improving the ROI for site operators.
Industrial-Grade Stability & IP54 Protection: Built to withstand rigorous outdoor use, the unit features an IP54-rated enclosure and IK10 impact resistance. It has undergone over 50,000 hours of reliability testing and operates flawlessly in temperatures ranging from -30°C to +50°C, ensuring military-grade stability for 24/7 public operation.
Smart Connectivity & OCPP 1.6J/2.0.1 Compliance: Fully integrated with global software standards, this charger allows for seamless remote management, real-time monitoring, and automatic billing. The 7-inch high-brightness touch screen provides an intuitive user interface, supporting multiple authentication methods including RFID, App-based scanning, and plug-and-charge (ISO 15118).
Meeting the escalating demands of modern electric mobility requires uncompromising power delivery. This station provides a robust 120kW high-speed output, designed to drastically cut down waiting times and keep vehicles on the move. By supporting an ultra-wide voltage range, it acts as a universal energy bridge, seamlessly connecting current automotive technologies with the next generation of high-performance electric transit.
Rapid Replenishment: Capable of boosting an average electric vehicle battery from 30% to 80% in approximately 20 to 30 minutes, facilitating rapid turnover for busy transit hubs.
Ultra-Wide Voltage Spectrum: Operates flawlessly across a 150VDC to 1000VDC range, ensuring precise power delivery regardless of the specific vehicle's internal battery architecture.
Forward-Looking Compatibility: Perfectly backward-compatible with widespread 400V passenger vehicles while proactively adapting to the latest 800V high-voltage platforms hitting the market.
Consistent Power Output: Maintains stable and continuous energy flow, preventing power fluctuations that could extend charging sessions or disrupt driver schedules.
For facility operators, maximizing the utility of every square meter is paramount. This machine is equipped with sophisticated logic that actively manages energy distribution based on real-time demand. By accommodating two vehicles simultaneously without compromising electrical stability, it directly enhances the profitability and throughput of your charging facility.
Dual-Gun Simultaneous Operation: Features two independent charging connectors, allowing two vehicles to draw power concurrently, effectively doubling the service capacity of a single parking bay.
Dynamic Power Sharing: Built-in intelligent algorithms dynamically allocate the 120kW output between the two connectors based on each vehicle's specific battery requirements and current state of charge.
Maximized Station Turnover: By serving more vehicles per hour, the system significantly reduces queue times, elevates user satisfaction, and increases the overall volume of daily transactions.
Accelerated Investment Recovery: The combination of high electrical efficiency, dual-vehicle support, and reduced downtime translates directly to a dramatically improved Return on Investment (ROI) for site managers.
Traditional fast-charging infrastructure often demands extensive site preparation and large spatial footprints. This integrated machine disrupts that norm with an ultra-compact, all-in-one vertical cabinet design. It is meticulously engineered to fit seamlessly into standard parking environments, eliminating the need for costly and disruptive civil engineering modifications.
Minimal Footprint: The sleek vertical architecture requires a fraction of the space compared to traditional split-system chargers, preserving valuable parking real estate for actual vehicles.
All-in-One Integration: Consolidates power modules, metering, and control systems into a single enclosure, simplifying the physical infrastructure required on-site.
Standard Stall Deployment: Perfectly dimensioned at 1550x360x500mm to be installed directly within or adjacent to standard parking stalls without obstructing vehicle pathways or pedestrian walkways.
Reduced Civil Engineering Costs: By avoiding massive site remodeling and complex underground trenching, the initial deployment capital expenditure is substantially lowered.
Aesthetic Integration: The minimalist and elegant design blends effortlessly into modern commercial landscapes, enhancing the visual appeal of premium office buildings and upscale residential communities.
In the era of digital facility management, a charging station must be as intelligent as the vehicles it powers. This unit is fully integrated with global software standards, providing managers with unparalleled remote oversight while offering end-users a frictionless, intuitive interaction from the exact moment they plug in.
OCPP 1.6J/2.0.1 Compliance: Ensures seamless interoperability with third-party cloud management platforms for centralized monitoring, detailed reporting, and automated billing workflows.
High-Visibility Interface: Equipped with a 7-inch high-brightness touch screen that remains clearly legible even under direct intense sunlight, guiding users step-by-step through the process.
Versatile Authentication: Supports a wide array of secure access methods including RFID card swipe, mobile App-based QR code scanning, and secure password entry.
Plug-and-Charge Ready: Incorporates ISO 15118 standards, allowing compatible vehicles to automatically authorize and initiate the charging session simply by plugging in the cable.
Robust Network Connectivity: Features 4G full network and Ethernet communication interfaces, ensuring uninterrupted data transmission and real-time status updates to the central dashboard.
Outdoor infrastructure faces relentless environmental challenges, from scorching summer heat to freezing winter precipitation. Constructed with an unwavering commitment to durability, this machine provides military-grade stability. Its robust exterior and meticulously sealed internal compartments guarantee flawless 24/7 public operation, regardless of the geographic location or seasonal extremes.
IP54 Environmental Rating: Provides stringent protection against dust ingress and splashing water from any direction, ensuring internal electronics remain pristine and functional.
IK10 Impact Resistance: The reinforced enclosure is engineered to withstand severe physical impacts, safeguarding your investment against accidental vehicle collisions or vandalism.
Extreme Temperature Resilience: Operates reliably in harsh climates ranging from -25°C to +50°C, with intelligent power derating up to +70°C to actively prevent thermal damage.
Anti-Corrosion Treatment: The exterior casing undergoes specialized treatments to resist rust and degradation, maintaining its structural integrity and aesthetic appeal over years of outdoor exposure.
Proven Reliability: Subjected to over 50,000 hours of rigorous reliability testing, guaranteeing uninterrupted service and minimizing unexpected maintenance calls.
Pumping 120kW of electrical power requires an absolute guarantee of safety for both the user and the local power grid. This integrated system employs a multi-layered defense mechanism, actively monitoring every electrical parameter. It acts as a secure bridge between the utility supply and the vehicle's sensitive energy storage system, preventing anomalies from causing catastrophic damage.
Active BMS Linkage: Communicates continuously with the vehicle's Battery Management System to precisely tailor voltage and current, preventing overcharging and thermal runaway.
Comprehensive Electrical Safeguards: Built-in defenses against over-voltage, under-voltage, over-current, and short circuits instantly sever power if any anomalies are detected.
Integrated Surge Protection: Industrial-grade lightning and surge arresters shield the internal power modules and the connected vehicle from sudden utility grid spikes.
Thermal Monitoring: Multiple internal sensors constantly track operating temperatures, automatically adjusting output or activating cooling systems to prevent overheating.
Grid-Harmonic Optimization: Advanced power conversion technology minimizes harmonic distortion, ensuring that the station draws clean power without destabilizing the local electrical grid.
Long-term operational success relies heavily on minimizing downtime and keeping maintenance overhead strictly controlled. The architecture of this charging machine is fundamentally modular, transforming complex repairs into simple, rapid component swaps. Furthermore, its forward-thinking design allows for seamless future upgrades, ensuring your infrastructure evolves alongside advancements in automotive technology.

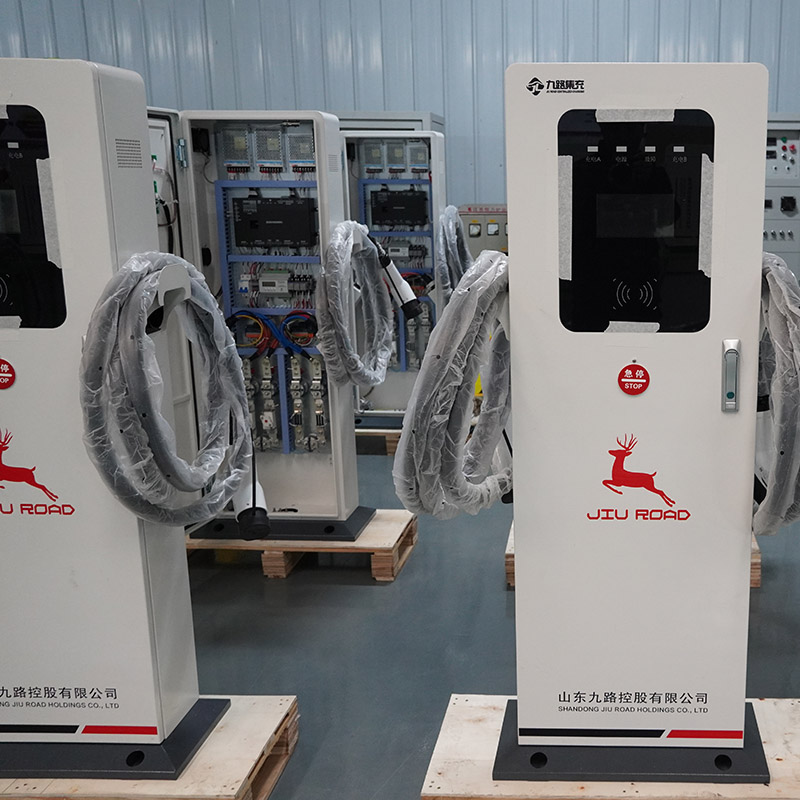

Modular Power Units: Internal components are segmented into easily accessible modules, allowing technicians to replace specific parts quickly without dismantling the entire cabinet.
OTA Remote Diagnostics: Over-The-Air capabilities enable remote engineers to diagnose software issues, update firmware, and resolve faults without requiring a costly physical site visit.
Upgradeable Finished Power: The system architecture supports future power capacity enhancements, allowing operators to scale up output as higher-capacity vehicles become the industry standard.
Maintenance-Free Design Philosophy: Utilizing high-quality, long-warranty components and self-cleaning airflow channels significantly reduces the frequency of routine physical inspections.
Lower Total Cost of Ownership (TCO): By drastically cutting down on repair times and extending the overall service life of the unit, operators experience a highly favorable lifecycle cost.
Selecting the right infrastructure partner is a critical decision that impacts your operational success for years to come. As a dedicated manufacturer and direct supplier, we bypass intermediaries to bring you uncompromising quality and technological innovation straight from the source. Our commitment extends far beyond the hardware, providing a comprehensive ecosystem of support tailored for commercial operators.
Direct Manufacturer Advantage: By sourcing directly from our production facilities, you benefit from transparent pricing, rigorous quality control, and priority access to inventory.
Unmatched Quality Assurance: Every unit undergoes exhaustive stress testing and quality checks before leaving our factory, ensuring it meets the highest global standards upon arrival.
Customized Solutions: We understand that every deployment site has unique requirements; our engineering team is ready to tailor hardware and software configurations to match your specific operational goals.
Dedicated Technical Support: Our global network of technical experts provides rapid response assistance, from initial site planning and installation guidance to ongoing lifecycle maintenance.
Proven Industry Expertise: With years of specialized experience in electric vehicle infrastructure, we deliver reliable, future-proof solutions that consistently drive profitability for our partners.
To assist facility managers and procurement teams in making informed decisions, we have compiled answers to the most critical technical and operational inquiries regarding our 120kW integrated charging system.
The intelligent allocation system continuously monitors the demand from both connected vehicles. If one vehicle requires less power as its battery nears full capacity, the system automatically redirects the surplus energy to the second vehicle. This ensures the full 120kW is utilized efficiently at all times, reducing overall charging times for both users and maximizing station throughput.
Absolutely. The machine features an ultra-wide output voltage range from 150VDC to 1000VDC. It seamlessly detects the vehicle's electrical architecture upon connection and automatically adjusts its output to safely and rapidly charge both legacy 400V vehicles and the newest 800V high-performance platforms without any manual intervention.
Due to its highly integrated vertical design and minimal footprint (1550x360x500mm), the unit requires significantly less site preparation than traditional split systems. Typically, it only requires a standard concrete mounting pad and appropriate electrical conduit routing, allowing it to be placed directly within existing parking stall layouts without major trenching or structural overhauls.
The enclosure is strictly IP54-rated, featuring heavy-duty weather seals that completely block water ingress from heavy rain and splashing. Internally, the system is designed to operate flawlessly down to -25°C. It utilizes intelligent thermal management to maintain optimal internal operating temperatures, ensuring the sensitive electronics remain safe and highly functional even in freezing conditions.
Yes, the system is fully compliant with OCPP 1.6J and 2.0.1 international protocols. This standardized communication framework allows it to seamlessly connect with almost any third-party or proprietary cloud management platform, granting you full control over remote monitoring, user authentication, load balancing, and automated billing processes.
