Product Description
Urban centers face an unprecedented challenge: the exponential rise in electric vehicle adoption clashing with the severe scarcity of usable real estate. The Multi-layer Intelligent Vertical EV Charging & Parking Solution is engineered specifically to dismantle this spatial bottleneck. Picture a sleek, towering architectural marvel seamlessly integrated into a bustling downtown office complex or a premium residential estate. As a vehicle approaches the loading bay, the quiet hum of precision-engineered stacker-cranes takes over, effortlessly lifting heavy electric vehicles with fluid, vibration-free motion. The cold, robust steel of the vertical matrix ensures absolute structural integrity, while the intuitive digital interface guides operators and drivers through a frictionless drop-off sequence.
This is not merely a parking structure; it is a high-yield energy asset. By fusing heavy-duty mechanical engineering with intelligent power distribution, property developers and facility operators can transform a static footprint into a dynamic revenue generator. The visual impact of the towering, illuminated charging matrix signals technological sophistication, while the silent, automated operation ensures minimal acoustic disturbance to surrounding environments. Every component, from the tactile feedback of the loading sensors to the seamless software integration, is meticulously crafted to deliver a flawless operational rhythm. This solution empowers urban planners and commercial property managers to leapfrog traditional infrastructure limitations, offering a premium, high-density charging oasis that operates continuously with unyielding reliability.

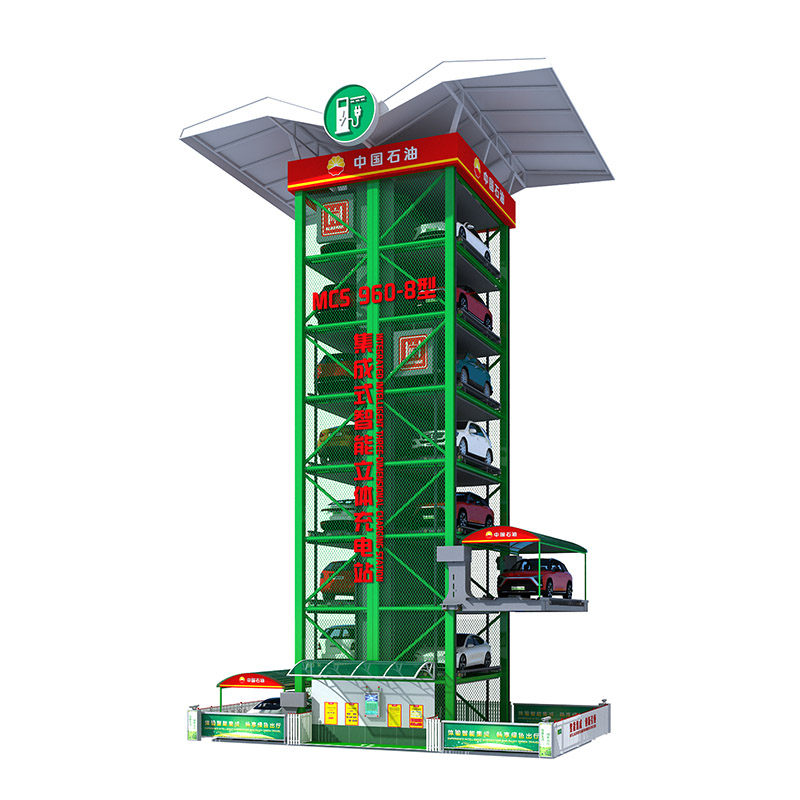

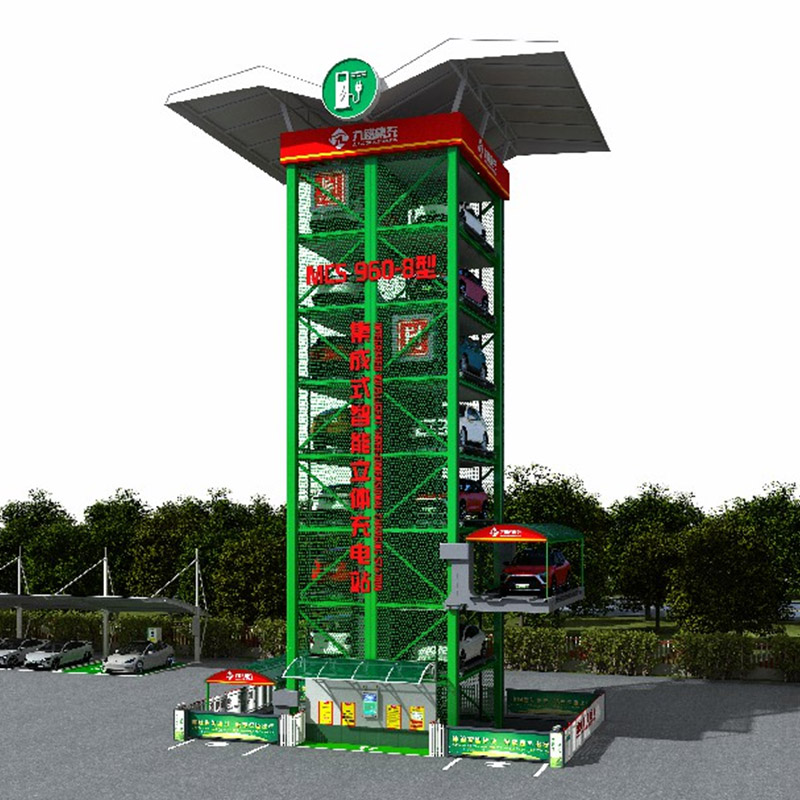

Vertical Space Optimization: Our system utilizes a vertical rotary or stacker-crane architecture (up to 20+ levels) that allows for the storage of 20 vehicles in the ground space typically occupied by only two. The 3D Vertical Charging Solution eliminates the need for sprawling charging plazas, making it the perfect fit for downtown office towers, high-end residential complexes, and hospital campuses.
Fully Automated "Park & Plug" Integration: Drivers simply leave their vehicle in the ground-level loading bay. Once the charging connector is attached, our automated system handles the vertical transport and storage. The software intelligently coordinates the charging sequence as vehicles move through the matrix, ensuring that every car is topped up and ready for retrieval upon the user's return via our mobile app.
High-Power DC Matrix Switching: The system is powered by our proprietary Modular Full-Flex DC Architecture. Instead of installing individual chargers at every bay, we utilize a centralized power stack that dynamically routes DC fast charging (up to 240kW per vehicle) to the specific pallets occupied by EVs. This reduces initial hardware investment and prevents grid overload through intelligent load balancing.
Revenue Synergy & Smart Management: By integrating OCPP 1.6J/2.0.1 and advanced ANPR (Automatic Number Plate Recognition), operators can manage parking fees and energy consumption through a single digital dashboard. This "Double Monetization" strategy allows property owners to charge for both the duration of the park and the energy delivered, significantly shortening the ROI period for the infrastructure.
Military-Grade Safety & Fire Suppression: Vertical systems require the highest safety standards. Our 3D solution includes integrated thermal sensors and automated fire-extinguishing systems at every level. Validated through 50,000 extreme condition tests, the mechanical and electrical components are built for 24/7 high-intensity operation, ensuring total security for the vehicles and the surrounding building structure.
Land scarcity in city centers, high-end residential complexes, and hospital campuses often stifles the expansion of essential mobility infrastructure. This solution directly targets that pain point by converting the traditional horizontal footprint into a towering vertical powerhouse, drastically altering the economics of site development.
Transforms the equivalent of two standard ground-level parking spots into a high-capacity hub accommodating up to 20 vehicles.
Utilizes a state-of-the-art vertical rotary or stacker-crane architecture that reaches up to 20+ levels, depending on zoning allowances.
Drastically reduces land acquisition costs, allowing operators to deploy high-density charging without purchasing expansive real estate.
Maximizes the financial yield per square meter, turning previously unusable or constrained alleyways into highly profitable hubs.
Traditional setups that allocate one dedicated charger per bay lead to massive hardware redundancy and severe strain on local utility grids. We have revolutionized this approach with our proprietary Modular Full-Flex DC Architecture, ensuring power is treated as a fluid, intelligent resource.
Features a centralized power stack capable of dynamically routing up to 240kW of DC fast charging to specific pallets based on real-time vehicle demand and battery state-of-charge.
Intelligently balances the electrical load across the entire matrix to prevent grid overload during peak usage hours.
Significantly lowers initial capital expenditure by eliminating the need to install individual high-power charging modules at every single bay.
Reduces the necessity for expensive utility grid upgrades, making deployment faster and more cost-effective for facility owners.
Enhancing the end-user journey while simultaneously boosting operational throughput is critical for high-traffic environments. This system delivers a completely frictionless, valet-style experience driven by advanced robotics, removing the stress of manual parking and charging.
Drivers effortlessly leave their vehicles in a spacious, brightly lit ground-level loading bay, avoiding the anxiety of navigating tight, multi-level concrete ramps.
Once the charging connector is engaged, the automated stacker seamlessly handles the vertical transport, secure storage, and charging schedule.
Integrated with a dedicated mobile application, allowing users to monitor charging status and schedule vehicle retrieval with a single tap.
Ensures that upon the driver's return, the vehicle is fully charged, automatically lowered to the ground bay, and ready for immediate departure.
Designed specifically to accelerate the return on investment (ROI) for infrastructure operators and commercial real estate developers, this system introduces a highly lucrative dual-revenue model that captures value from both time and energy.
Deeply integrates OCPP 1.6J/2.0.1 protocols with advanced Automatic Number Plate Recognition (ANPR) technology for seamless entry and exit logging.
Empowers operators to capture revenue from both the duration of the parking stay and the exact volume of energy delivered to the battery.
Consolidates all financial and operational data into a single, intuitive digital dashboard for streamlined accounting and management.
Enables dynamic pricing strategies based on peak hours, energy demand, or tenant membership tiers, maximizing overall profitability.
When dealing with high-density lithium-ion battery storage in vertical configurations, safety is the paramount concern. Our system is fortified with uncompromising, military-grade protective measures to ensure absolute peace of mind for property owners and users alike.
Every single level of the vertical matrix is equipped with highly sensitive thermal sensors to detect microscopic temperature anomalies instantly.
Features automated, targeted fire-extinguishing systems at each bay, capable of isolating and neutralizing thermal events before they can spread to adjacent vehicles.
Mechanical lifting components and electrical routing systems have been rigorously validated through 50,000 extreme condition tests.
Engineered specifically for 24/7 high-intensity operation, ensuring the structural integrity of the surrounding buildings and the safety of all stored assets.
Modern mobility infrastructure must be as intelligent in its software architecture as it is robust in its physical hardware. We deliver a comprehensive digital ecosystem that bridges physical vehicle storage with cloud-based energy and user management.
Supplies a powerful backend Charging Management System (CMS) that offers real-time remote monitoring, diagnostic capabilities, and user management.
Features open API architecture, allowing seamless integration with existing property management software, billing gateways, or third-party commercial charging networks.
Provides predictive maintenance alerts, instantly notifying operators of potential mechanical or electrical issues before they impact service availability.
Generates granular data analytics, offering deep insights into user behavior, peak utilization times, and overall facility energy consumption patterns.
Continuous uptime is the lifeblood of commercial mobility operations. Our solution is engineered for maximum reliability and backed by a comprehensive lifecycle support framework to ensure your investment operates flawlessly year after year.
Built upon a modular design philosophy, allowing individual mechanical or electrical components to be swapped out rapidly without dismantling the entire structure.
Leverages real-time online diagnostics to pinpoint faults instantly, drastically reducing troubleshooting time and minimizing equipment downtime.
Ensures high availability of parking and charging services, protecting the operator's revenue stream and maintaining high levels of user satisfaction.
Supported by a dedicated network of technical specialists, providing rapid-response maintenance, firmware updates, and long-term operational guidance.
Selecting the right partner for high-capital infrastructure projects requires confidence in both the technology and the organization behind it. As a seasoned manufacturer and dedicated supplier of advanced charging architectures, we bring unparalleled engineering pedigree to every installation. Our commitment goes beyond merely delivering equipment; we provide a holistic, end-to-end partnership designed to guarantee your operational success.
Proven Manufacturing Excellence: Operating out of state-of-the-art production facilities, we enforce stringent quality control protocols at every stage of fabrication, ensuring every steel beam and circuit board meets exact specifications.
Customized Engineering Solutions: We understand that no two urban landscapes are identical. Our engineering team collaborates closely with your architects to tailor the vertical footprint, aesthetic finish, and power requirements to your specific site.
Supply Chain Resilience: By maintaining robust relationships with top-tier component suppliers, we guarantee consistent production timelines and reliable delivery schedules, keeping your project on track.
Regulatory Compliance Expertise: Our systems are pre-engineered to meet and exceed stringent international safety, electrical, and structural codes, streamlining your permitting and municipal approval processes.
Future-Proof Scalability: The modular nature of our software and hardware ensures that as EV battery technologies evolve, your infrastructure can be seamlessly upgraded without requiring a complete system overhaul.
Navigating the complexities of automated vertical charging infrastructure requires detailed technical clarity. Below, we address the most critical inquiries from facility operators, urban planners, and infrastructure developers regarding system deployment, safety, and daily operation.
Our Modular Full-Flex DC Architecture acts as an intelligent energy broker. Instead of drawing maximum power simultaneously for every parked vehicle, the system assesses the state of charge (SoC) of each battery in real-time. It dynamically routes high-power DC current (up to 240kW) to vehicles that need it most, while trickling power to those nearing completion. This intelligent load balancing caps the total power draw, ensuring the facility never exceeds its allocated grid capacity, thereby avoiding peak demand penalties and the need for massive utility upgrades.
Operational continuity is a core design principle of our architecture. The system can be seamlessly integrated with localized Uninterruptible Power Supply (UPS) units and commercial battery energy storage systems (BESS). In the event of a grid blackout, the backup power ensures that the mechanical stacker-cranes remain operational, allowing users to safely retrieve their vehicles without delay. Concurrently, the software immediately pauses all active charging sessions and securely retains all transactional data until main power is restored.
Absolutely. Electric vehicles are inherently heavier than traditional internal combustion engine vehicles due to their dense battery packs. Our vertical stacker-crane architecture is constructed from high-tensile industrial steel and features heavy-duty lifting motors specifically calibrated for this new weight class. The system is certified to handle a maximum vehicle weight of 2350 kg to 2500 kg per pallet, comfortably accommodating large electric SUVs, luxury sedans, and commercial fleet vehicles without straining the mechanical components.
The billing experience is entirely frictionless and automated. When a vehicle enters the loading bay, the Automatic Number Plate Recognition (ANPR) system logs the exact time of entry. As the vehicle charges, the OCPP-compliant management software tracks the precise kilowatt-hours (kWh) delivered to the battery. When the driver initiates retrieval via the mobile app, the backend system calculates a consolidated invoice combining the hourly parking rate and the energy consumption tariff. Payment is processed digitally before the vehicle reaches the ground level, ensuring a smooth exit.
Yes, integration is highly streamlined. Our Charging Management System (CMS) is built on an open API architecture. This allows your IT deployment team to seamlessly bridge our operational data with your existing Building Management Systems (BMS), tenant portals, or third-party commercial parking networks. You can monitor live energy usage, track revenue streams, manage user access rights, and adjust dynamic pricing directly from your established corporate dashboards.
We employ a predictive maintenance model driven by real-time sensor data. The system's internal diagnostics continuously monitor the vibration, temperature, and electrical resistance of critical components. If a parameter deviates from its optimal baseline, the software alerts your facility managers and our remote support team immediately. Routine physical inspections are minimized due to the modular design, allowing technicians to swiftly replace specific drive belts, contactors, or sensors without taking the entire vertical matrix offline, thus preserving your operational uptime.
